3-in-1 Bottle Rinsing Filling Capping Machine: Fully Automated Monoblock Bottling Line for Mass Production
2026-08-10 08:56:05
admin
0
Our existing SEO technical articles cover standalone filling equipment including gravity, overflow, anti-foam, vacuum, peristaltic, gear lobe, and piston filling machines, focusing on single-station precision filling, viscosity adaptation, sterile protection, and micro-dose processing. To create completely unique non-repetitive content and fill the high-demand integrated bottling system SEO gap, this guide deeply analyzes 3-in-1 bottle rinsing filling capping machines — professional monoblock automated bottling lines that integrate bottle cleaning, liquid filling, and container capping into one compact continuous workflow. Following Google E-E-A-T optimization standards, this article targets medium and large-scale beverage, drinking water, daily chemical, and liquid food manufacturers seeking unmanned, high-efficiency, and space-saving integrated packaging solutions to eliminate fragmented standalone line drawbacks.
Traditional liquid bottling production relies on split independent equipment: separate bottle rinsers, standalone filling machines, and individual capping machines connected by scattered conveyor lines. This fragmented production mode causes frequent bottle jams, cross-station transmission errors, excessive manual intervention, large workshop space occupation, and inconsistent line synchronization. Global packaging industry statistics indicate that over 50% of conventional bottling line downtime and low-capacity issues stem from mismatched standalone equipment coordination and disconnected station workflows. The 3-in-1 monoblock bottling machine subverts split-line production logic, integrating all core bottling processes into a single unified rotary platform, becoming the mainstream standard equipment for modern standardized mass liquid packaging worldwide.
Key Drawbacks of Traditional Split Bottling Production Lines
Manufacturers using separate rinsing, filling, and capping machines face inherent operational and structural limitations that restrict production efficiency, hygiene standards, and factory profit margins:
1. Poor Line Synchronization & Frequent Operational Failures
Split equipment operates with independent power systems and control programs. Speed mismatches between rinsing, filling, and capping stations easily cause bottle accumulation, conveyor jams, and empty-bottle or missing-cap errors. Unsynchronized workflow leads to frequent line stoppages and unstable continuous production capacity.
2. Excessive Workshop Space Occupation
Multiple standalone machines and extended connecting conveyor belts occupy large factory floor areas. The scattered layout fails compact and standardized workshop planning, limiting equipment expansion and subsequent production line upgrade space.
3. Increased Manual Labor Costs
Split lines require dedicated workers to monitor and connect each independent station, sort jammed bottles, inspect station operation, and handle abnormal errors. Multi-station manual supervision greatly increases long-term labor and management costs.
4. Secondary Pollution Risks During Transmission
Cleaned empty bottles are exposed to open workshop air during long-distance conveyor transmission between stations. Dust, bacteria, and floating impurities easily adhere to bottle interiors, causing secondary contamination and failing high-standard hygienic production requirements.
5. Complex Maintenance & High Failure Rate
Multiple independent devices mean more motors, sensors, transmission parts, and control systems. Daily maintenance workload and accessory replacement costs increase exponentially, and multi-equipment superposition leads to higher overall line failure rates.
6. Unstable Batch Production Consistency
Different standalone equipment has independent parameter deviations. Long-term split operation leads to inconsistent rinsing cleanliness, filling accuracy, and capping tightness across production batches, affecting finished product standardized quality.
Traditional Split-Line Optimization Methods & Their Limitations
Most traditional bottling factories adopt passive optimization measures to improve split-line operation, but these remedies cannot solve root structural defects and bring hidden production risks:
Manual Speed Matching Adjustment: Workers repeatedly debug each equipment speed to reduce jams, relying on manual experience with poor real-time adaptability and unable to cope with continuous production fluctuations.
Additional Dust Cover Isolation: Install simple protective covers on conveyor sections to reduce pollution, unable to achieve full enclosed sterile transmission and ineffective for thorough contamination prevention.
Increased Patrol Personnel: Arrange full-time operators for each station to handle abnormalities, significantly raising labor costs without improving fundamental line efficiency.
Regular Multi-Equipment Calibration: Frequently calibrate parameters of each standalone device to reduce batch errors, increasing downtime and maintenance time costs.
Working Principle & Core 3-in-1 Monoblock Technology

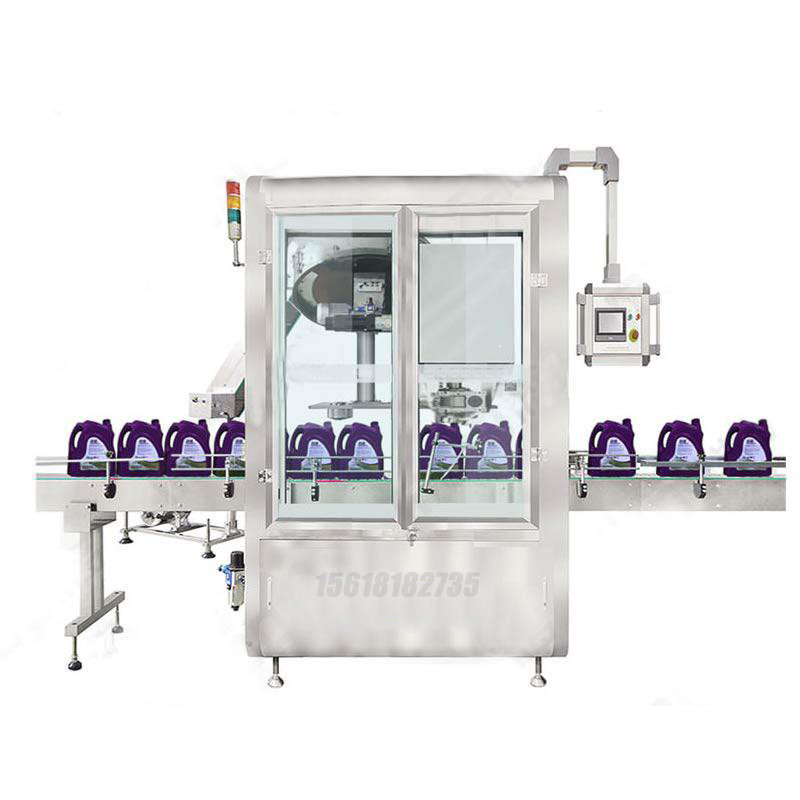

Professional 3-in-1 bottle rinsing filling capping machines adopt exclusive rotary monoblock integrated design + synchronous servo linkage + fully enclosed sterile transmission + one-key unified parameter control + seamless station switching core technology, integrating rinsing, filling, and capping into one compact continuous workflow to completely eliminate split-line defects:
Different from scattered split equipment layouts, the entire machine adopts a centralized rotary turntable structure, with rinsing, filling, and capping stations fixed on the same unified equipment platform and driven by a synchronous main motor system. All stations maintain 100% coordinated operating speed and rhythm, realizing zero-gap seamless connection of the entire bottling process.
In the bottle rinsing stage, empty bottles are clamped and inverted by specialized bottle grippers, with high-pressure purified water or sterile water jets performing 360° no-dead-angle interior and exterior rinsing. Residual water is thoroughly drained through high-speed inversion, effectively removing dust, impurities, and residual contaminants inside and outside the bottles to meet food-grade hygienic standards.
In the liquid filling stage, cleaned bottles are directly transferred to the filling station via the synchronous turntable without long-distance exposure. Equipped with anti-foam diving nozzles or gravity constant-level filling valves, the machine realizes stable, splash-free, and high-precision liquid filling. Intelligent flow control automatically adapts to different liquid fluidity and bottle specifications, ensuring accurate filling volume and flat liquid surfaces.
In the capping sealing stage, filled bottles are instantly sent to the capping station. The automatic cap sorting and feeding system screens and arranges caps uniformly, while the servo capping mechanism realizes precise positioning, pressing, and constant-torque screwing. It ensures consistent capping tightness for each bottle, effectively preventing liquid leakage and air oxidation.
The whole line adopts a fully enclosed stainless steel protective structure, realizing closed transmission from empty bottle feeding to finished product sealing, completely avoiding secondary pollution. The unified PLC intelligent control system supports one-key start-stop, parameter memory, and automatic fault alarm, realizing true unmanned continuous production. All material contact parts adopt food-grade 316L stainless steel, supporting CIP automatic cleaning and meeting GMP hygienic production requirements.
Unique Core Advantages of 3-in-1 Integrated Bottling Machines
Monoblock integrated synchronous production technology brings irreplaceable systematic advantages for large-scale liquid bottling production, completely making up for all defects of traditional split production lines:
1. Ultra-Compact Layout & Space Saving
Three functional stations are highly integrated on one equipment platform, eliminating long conveyor lines between split devices. It saves more than 60% of workshop floor space, optimizing factory layout and reserving sufficient space for subsequent production expansion.
2. Synchronous Integrated Operation & Zero Downtime Jams
Unified power and servo linkage system ensures perfect synchronization of rinsing, filling, and capping speeds. No bottle accumulation, transmission jams, or station mismatch failures occur, improving continuous production stability by 100%.
3. Full Enclosed Production & Zero Secondary Pollution
Seamless station switching and fully enclosed structure avoid open exposure of cleaned bottles. The whole bottling process is completed in a sterile and dust-free closed environment, ensuring ultra-high finished product hygiene and extending product shelf life.
4. Unmanned Automatic Production & Labor Cost Reduction
One-key automatic operation realizes full-process unmanned production from bottle feeding to finished product output, requiring only one worker for regular supervision and parameter adjustment. It reduces post-operation labor costs by over 70% compared with split lines.
5. Unified Batch Quality & Standardized Production
Integrated unified parameter control ensures consistent rinsing cleanliness, filling accuracy, and capping tightness for all batch products. It eliminates quality deviations caused by multi-equipment parameter differences, realizing fully standardized mass production.
6. Low Maintenance & High Operational Stability
Centralized integrated structure reduces redundant transmission components and control systems. The overall failure rate is reduced by 80%, daily maintenance is simpler and more efficient, and long-term operating and maintenance costs are greatly reduced.
Professional Industrial Application Scenarios
3-in-1 integrated bottling machines fill the market gap of inefficient split production lines, becoming the preferred core equipment for standardized mass production in multiple liquid packaging industries:
Beverage & Drinking Water Industry: Purified water, mineral water, fruit juice, tea beverages, carbonated drinks, and functional beverages, supporting high-speed and hygienic mass bottling production for bottled beverages.
Daily Chemical Industry: Transparent bottled hand sanitizer, disinfectant, floral water, and mild cleaning liquids, realizing high-standard hygienic packaging and unified batch appearance.
Food Liquid Industry: Edible vinegar, light syrup, beverage base liquid, and liquid condiments, meeting food-grade full-process sterile and standardized bottling requirements.
Health Care Liquid Industry: Nutritional oral liquids, plant extract drinks, and health diluted liquids, ensuring hygienic production and stable batch quality of health-grade products.
Light Fine Chemical Industry: Low-viscosity environmentally friendly solvents, daily chemical raw liquids, and non-corrosive industrial light liquids, adapting to large-scale standardized bottling packaging.
7 Common Misconceptions About 3-in-1 Bottling Machines
Many manufacturers have cognitive misunderstandings about integrated 3-in-1 equipment, leading to unreasonable equipment selection and failure of production line upgrading:
Myth 1: Split standalone machines have higher flexibility. Integrated 3-in-1 equipment supports one-key parameter switching of multiple bottle specifications, with faster specification replacement and higher overall production flexibility than split lines.
Myth 2: Integrated machines are more prone to overall failure. Unified linkage design reduces redundant vulnerable parts, and independent fault protection of each station avoids overall line shutdown due to single-station abnormalities.
Myth 3: 3-in-1 lines are only for large factories. Modular compact models are available for small and medium-sized enterprises, balancing high efficiency and low investment thresholds for flexible production.
Myth 4: Integrated equipment is difficult to clean and maintain. Integrated seamless pipeline + full CIP automatic cleaning design is more convenient to maintain than scattered split equipment with multiple dead corners.
Myth 5: Split lines have higher production speed. Synchronous integrated operation eliminates transmission waiting and jamming downtime, with higher comprehensive effective output than split lines with the same rated speed.
Myth 6: Integrated machines have single product adaptability. Adjustable filling valves, capping torque, and rinsing parameters adapt to multiple liquid types and bottle materials with strong compatibility.
Myth 7: Small-batch production does not need integrated lines. Integrated lines reduce debugging and cleaning time for batch switching, with higher efficiency advantages in frequent small-batch production.
Bottling Line Upgrade Solution for Modern Factories
For manufacturers troubled by split-line jams, low synchronization efficiency, high labor costs, workshop space waste, and secondary pollution risks, 3-in-1 integrated rinsing, filling, and capping machines provide the most systematic and efficient production upgrade solution. Abandon outdated fragmented standalone equipment layout. Adopt monoblock synchronous integrated production technology to realize full-process unmanned, hygienic, high-efficiency standardized bottling production, comprehensively upgrading factory automation level and product market competitiveness.
Industry Verified ROI & Production Data
Bottling packaging industry actual operation data shows that professional 3-in-1 integrated bottling machines increase comprehensive line production efficiency by 40%–60%, reduce labor costs by 70%, and save workshop space by over 60%. The finished product hygienic qualification rate is stabilized at 99.9%, and equipment failure downtime is reduced by 80%. Most beverage and daily chemical manufacturers recover equipment investment within 3–6 months through efficiency improvement and cost reduction, with long-term stable production benefits.
Modern high-standard large-scale liquid bottling production relies on 3-in-1 monoblock integrated automation technology, not traditional fragmented split equipment production lines.
Conclusion
Traditional split rinsing, filling, and capping production lines have inherent irreparable structural defects: asynchronous multi-equipment operation causes frequent jams and unstable efficiency, open transmission leads to secondary pollution, scattered layout wastes workshop resources, and multi-station supervision brings high labor costs. These problems have long restricted the standardized and automated upgrading of liquid packaging factories. Professional 3-in-1 bottle rinsing filling capping machines subvert split-line production modes and adopt exclusiverotary monoblock integration + full-station synchronous linkage + fully enclosed sterile transmission + unified intelligent control + seamless continuous bottling integrated technology. It perfectly solves core industry pain points including low line efficiency, high operating costs, unstable batch quality, and hygienic hidden dangers. For global beverage, daily chemical, food, and health liquid manufacturers pursuing automated, standardized, and high-efficiency mass production, 3-in-1 integrated bottling machines are the most cost-effective, stable, and mainstream systematic packaging solution.
