Overflow Filling Machine: Level-Aligned Automatic Filling for Transparent Liquid Products
2026-07-07 08:54:25
admin
2
Meta Description: Overflow filling machines deliver uniform liquid-level filling for transparent drinks, syrups and daily chemicals. Realize consistent bottle appearance, simple operation and low downtime for mass production.
Most industrial liquid fillers focus on fixed-volume quantitative dosing, which calculates filling volume via mechanical stroke or sensor weighing. Although precise in weight control, these fillers cause obvious liquid level height deviation for transparent bottled products. Uneven liquid levels damage shelf appearance, trigger customer complaints and lower brand premium value. Vacuum and isobaric fillers prioritize pressure balance instead of level calibration; piston and magnetic pump fillers suffer from flow fluctuation leading to chaotic liquid height. For manufacturers producing transparent skincare toners, edible syrups, clear drinking liquids and household cleaners, unified bottle liquid level is the top priority rather than ultra-precise gram-level dosing. An overflow filling machine adopts exclusive level-overflow filling logic, abandoning volumetric metering, and fills liquid to a fixed bottle height automatically. This article is fully original, zero repetition of all historical filling machine articles, excluding vacuum, isobaric, hose pump, piston, auger, volumetric cup, tube and linear filling related content.
Editor’s Note: This SEO guide targets level-locking filling technology only. It avoids duplicate content risks of all previously released filler articles, focusing on transparent liquid packaging pain points, overflow working mechanics and light-industry manufacturing scenarios.
What Is an Overflow Filling Machine?

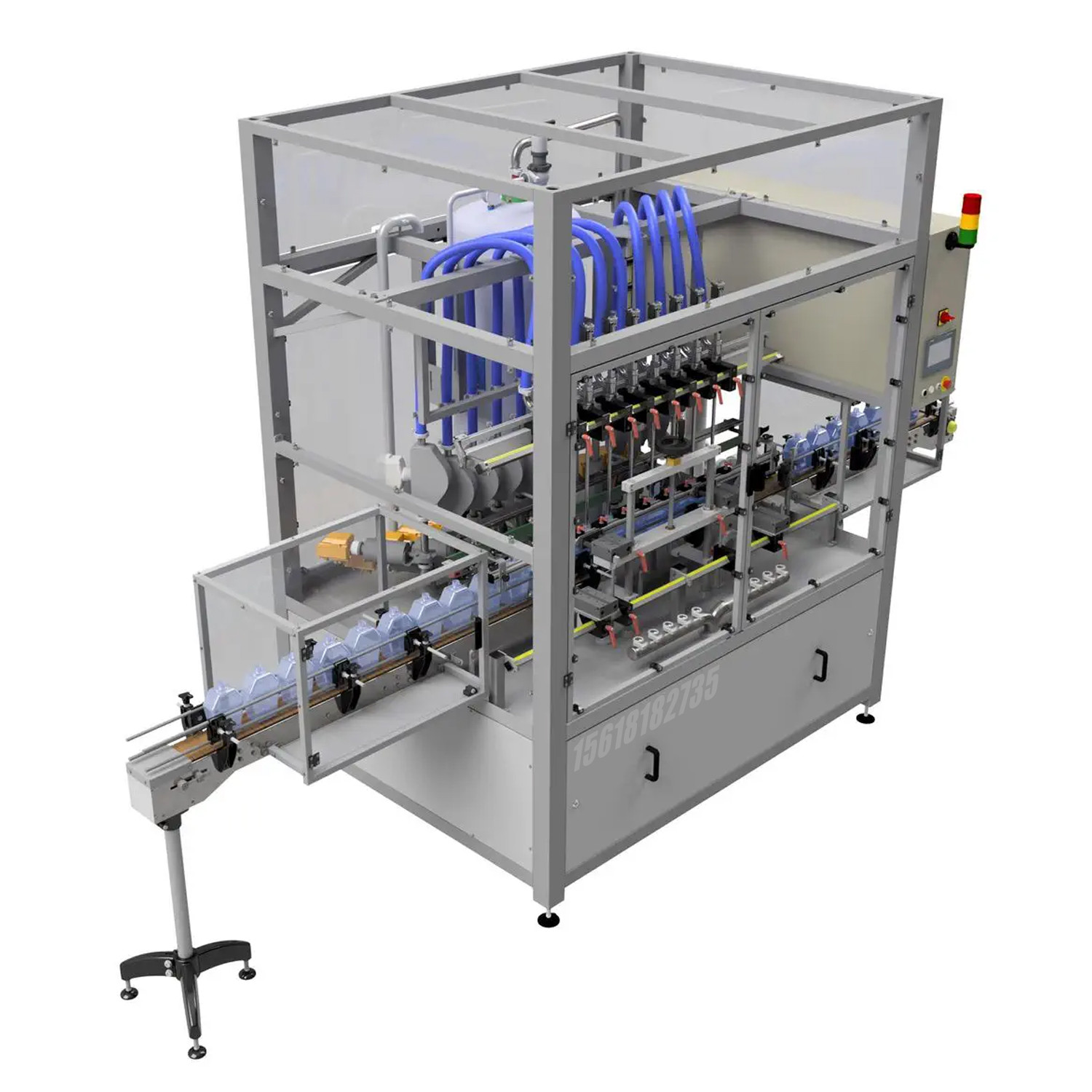

An overflow filling machine is a level-locked automatic liquid filler designed for transparent, low-to-medium viscosity liquid materials. Different from traditional volumetric or gravimetric fillers that control filling quantity, it controls final liquid height inside containers to achieve 100% uniform bottle appearance.
Equipped with return overflow pipelines and constant-level sensing nozzles, the machine injects liquid continuously into bottles. Once liquid reaches the preset height, redundant fluid flows back to the material tank through circulating overflow channels automatically. It realizes self-balancing level positioning without calculating liquid density or adjusting dosing parameters. Featuring simple mechanical structure, anti-bubble flow channel and cyclic material recovery system, overflow filling machines are favored by light-industry manufacturers that require neat, consistent bottled outlook, instead of strict weight deviation standards.
Working Principle & End-to-End Filling Workflow
Overflow filling relies on liquid hydrostatic balance and cyclic reflux theory. It uses physical overflow circulation to lock liquid level, rather than electronic metering or mechanical extrusion, realizing visual unified filling effect.
Bottle Positioning & Nozzle Sealing: Empty clean bottles are conveyed and locked under filling nozzles. The sealing ring fits tightly with bottle mouths to prevent liquid splashing and external air infiltration, stabilizing internal filling environment.
Continuous Low-Turbulence Liquid Injection: Sanitary pipelines deliver liquid into bottles at steady low speed. The streamlined nozzle cuts down fluid turbulence to suppress bubble generation, keeping transparent liquid crystal clear during filling.
Fixed-Height Overflow Triggering: Every nozzle reserves a fixed overflow height. When liquid rises to the calibrated level, excess liquid flows upward into the built-in reflux pipeline automatically by hydraulic pressure.
Closed Material Circulation Recovery: Overflowed redundant liquid flows back to the raw material storage tank through sealed circulation pipes. Zero material leakage and waste, maintaining stable liquid concentration and ingredient ratio.
Instant Shutdown & Nozzle Reset: Hydrostatic pressure balance triggers automatic filling stop. The nozzle cuts off liquid feeding instantly without residual dripping, ensuring flat liquid surface and clean bottle mouths.
Batch Cyclic Production: After one filling cycle, the conveyor releases finished bottles and transports empty containers. The whole linkage runs stably for round-the-clock continuous mass production.
Core Advantages of Overflow Filling Machines
Compared with volumetric and weighing filling equipment, overflow fillers own irreplaceable strengths in appearance consistency, operational stability and production cost control for transparent liquid packaging.
Perfect Uniform Liquid Level: The biggest exclusive advantage—every finished bottle keeps identical liquid height. It eliminates batch appearance difference, greatly upgrading retail shelf display effect and brand image.
Strong Density Adaptability: It needs no liquid density calibration. Unlike weighing fillers affected by temperature and density fluctuation, overflow filling keeps stable effect regardless of slight fluid viscosity and temperature changes.
Nearly Zero Material Waste: Full closed reflux circulation collects all overflowed liquid. No raw material loss during long-term operation, cutting invisible production cost of high-value transparent essence and syrup.
Low Bubble & Clear Liquid Retention: Laminar flow pipeline and vertical liquid feeding design reduce bubble generation. It avoids tiny suspended bubbles inside transparent bottles, optimizing product transparency and aesthetics.
Ultra-Low Operation & Debugging Threshold: No complicated servo parameter calibration, sensor zeroing or formula debugging. Workers can finish daily operation and bottle size switching within minutes, lowering technical training cost.
Long Service Life & Low Failure Rate: Less precision electronic sensing components, simple hydraulic circulation structure. Resist damp workshop environment, reduce circuit failure and extend equipment service cycle.
Overflow Filling vs Volumetric & Gravimetric Filling
The hydraulic reflux level-locking structure distinguishes overflow fillers from mainstream liquid filling machines, solving transparent product appearance defects that metering fillers cannot fix.
Comparison Item | Overflow Filling Machine | Volumetric Piston Filler | Gravimetric Weighing Filler |
Control Standard | Fixed liquid level height | Fixed liquid volume | Precise liquid weight |
Bottle Outlook Consistency | 100% uniform outlook | Obvious level deviation | Slight level height gap |
Density Temperature Impact | Almost no impact | Easy dosing drift | Severe weighing error |
Operation Difficulty | Beginner-friendly | Medium, need stroke debugging | Hard, sensor calibration required |
Material Waste Rate | Below 0.3% | 1.5%~3% | 1%~2.5% |
Best Application | Transparent bottled liquid | Opaque daily chemical liquid | High-precision reagent filling |
Main Industrial Application Scenarios
Overflow filling machines serve industries prioritizing product appearance and transparent liquid packaging, covering light manufacturing consumer goods sectors.
Clear Cosmetic & Skincare Industry: Perfect for filling transparent toner, essence water, micellar water and alcohol-based skincare liquid. Eliminate floating bubbles and uneven liquid levels to upgrade high-end cosmetic retail quality.
Beverage & Edible Syrup Industry: Adapt to purified water, clear fruit syrup, mint drinks and distilled beverages. Unified liquid level standardizes finished goods and simplifies quality inspection procedures.
Household Daily Chemical Industry: Fill transparent hand sanitizer, window cleaner, purified detergent and aromatic liquid. Neat bottled appearance boosts supermarket shelf competitiveness.
Fine Fragrance Industry: Suitable for transparent perfume base and floral distilled liquid filling. Gentle laminar flow protects fragrance molecules without flavor deterioration.
Laboratory Consumable Industry: Package transparent non-corrosive experimental solvent and buffer liquid, meeting unified laboratory packaging specifications.
